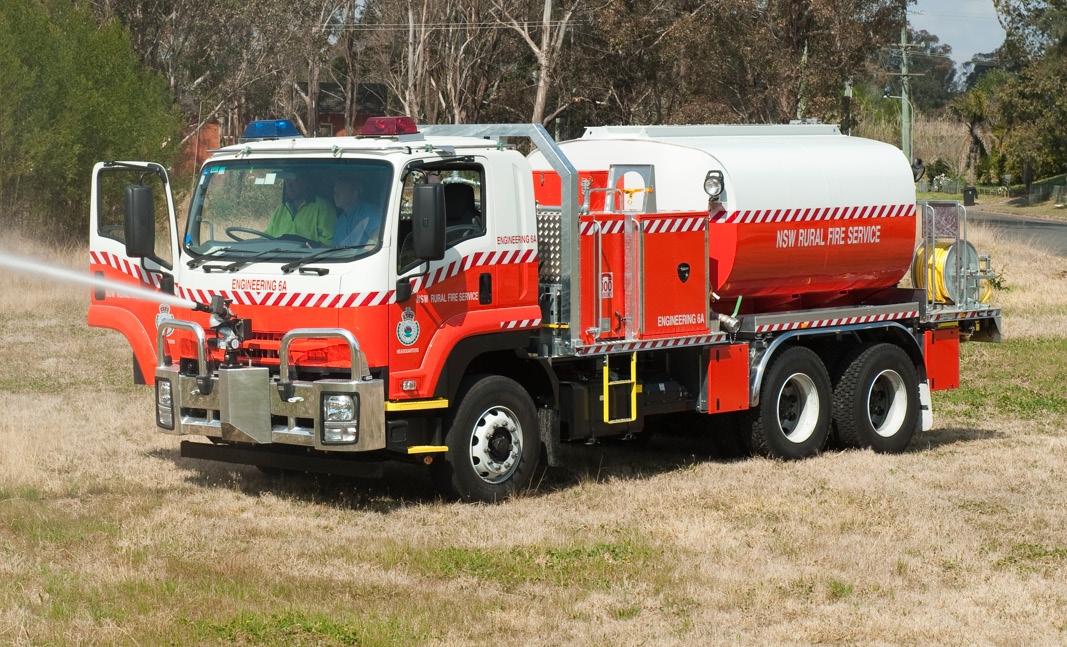

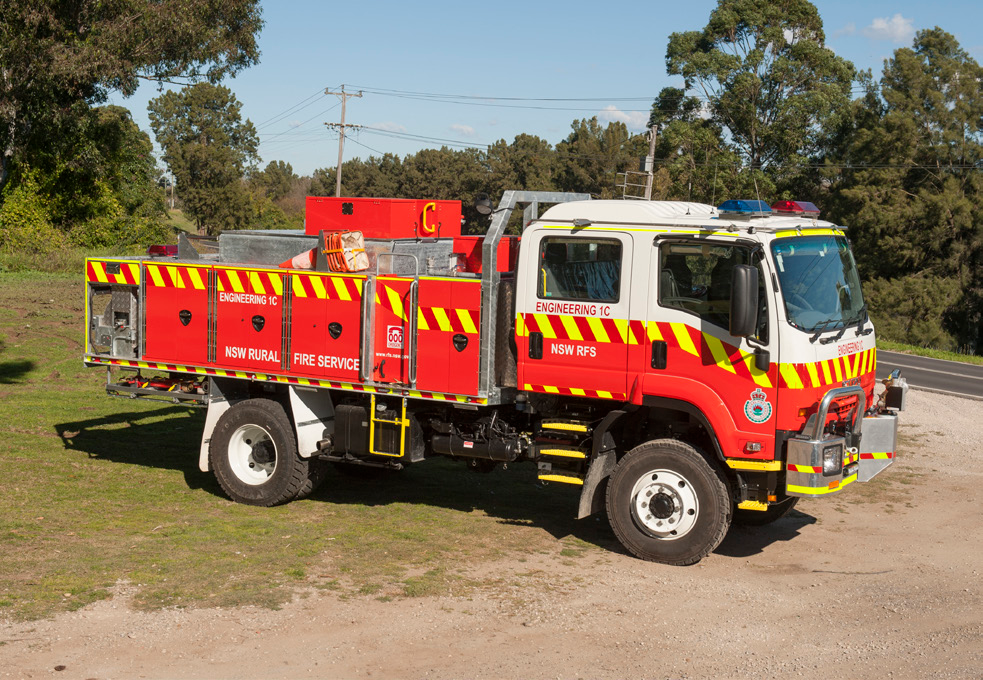

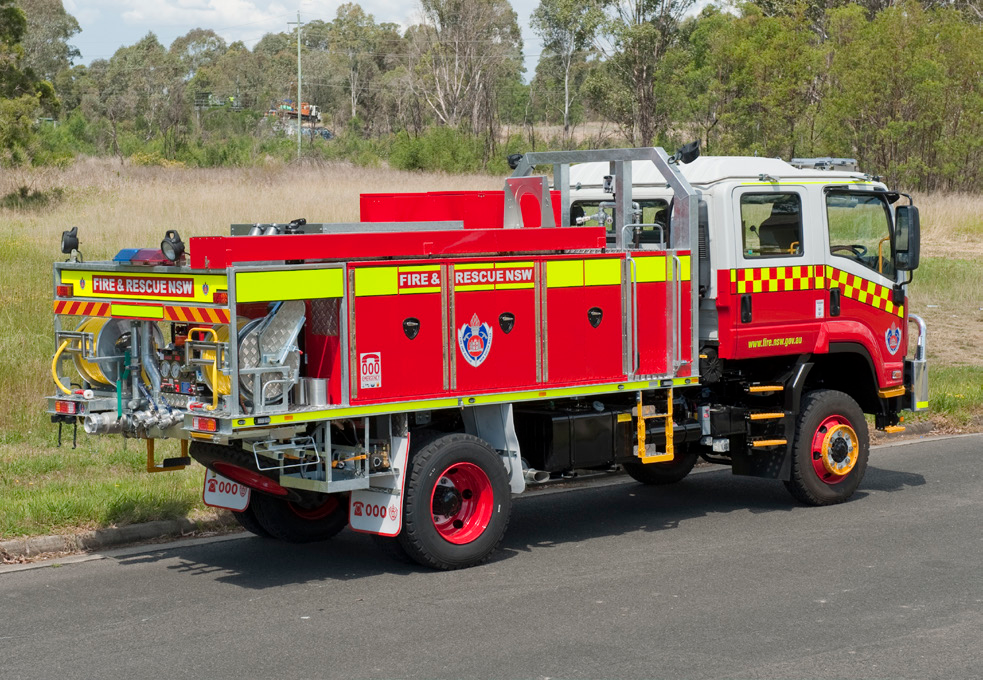

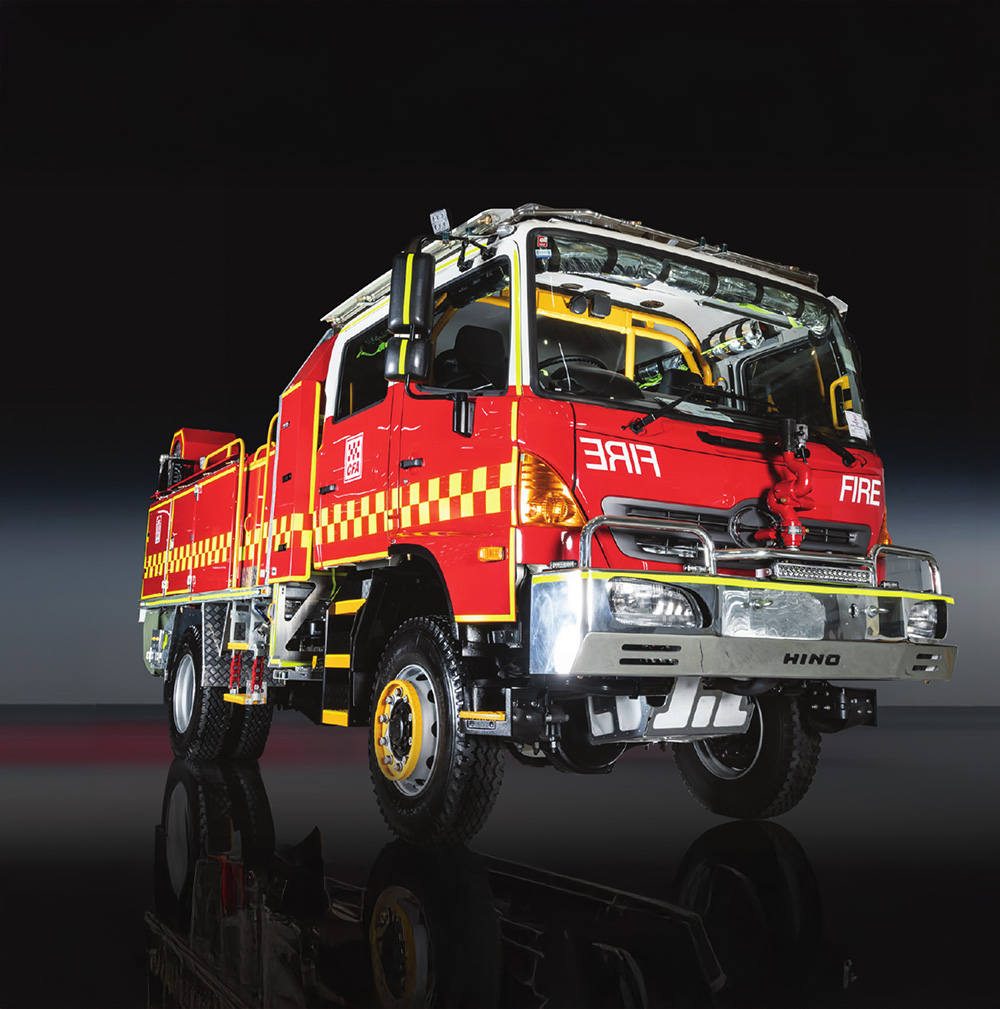

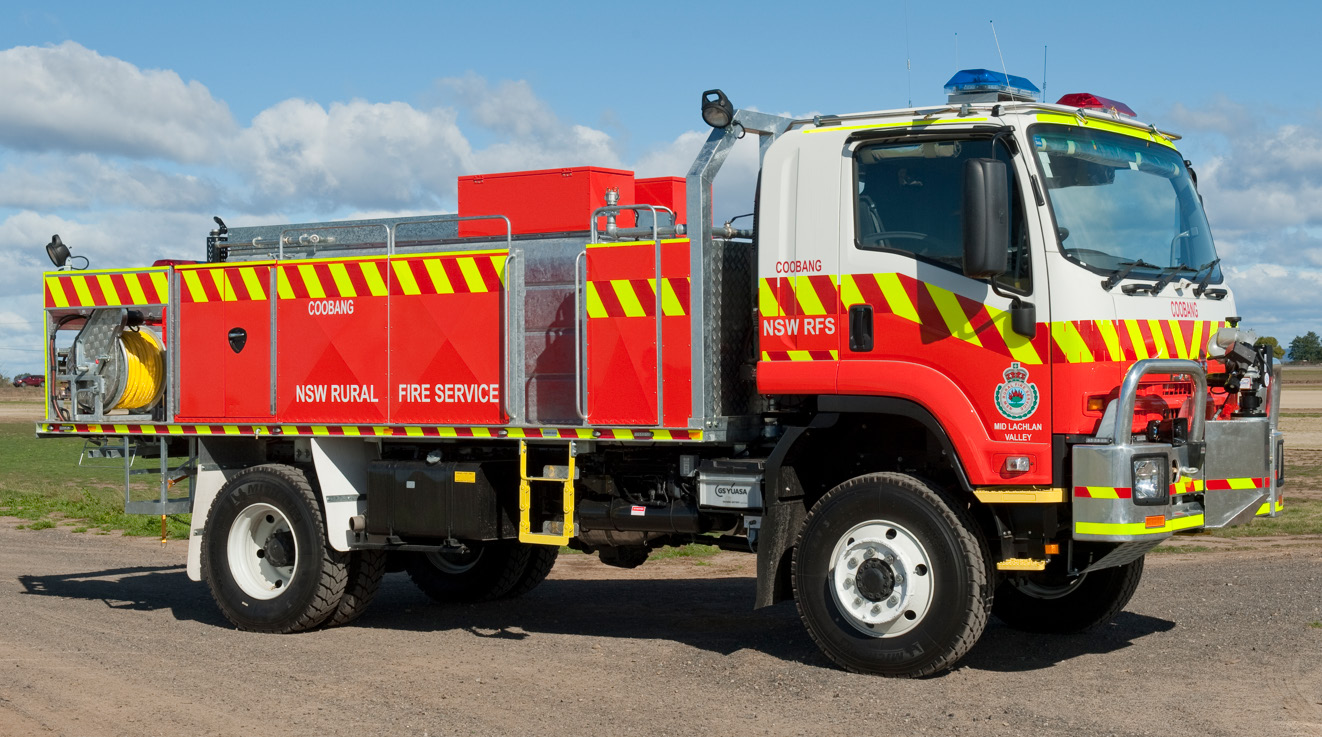

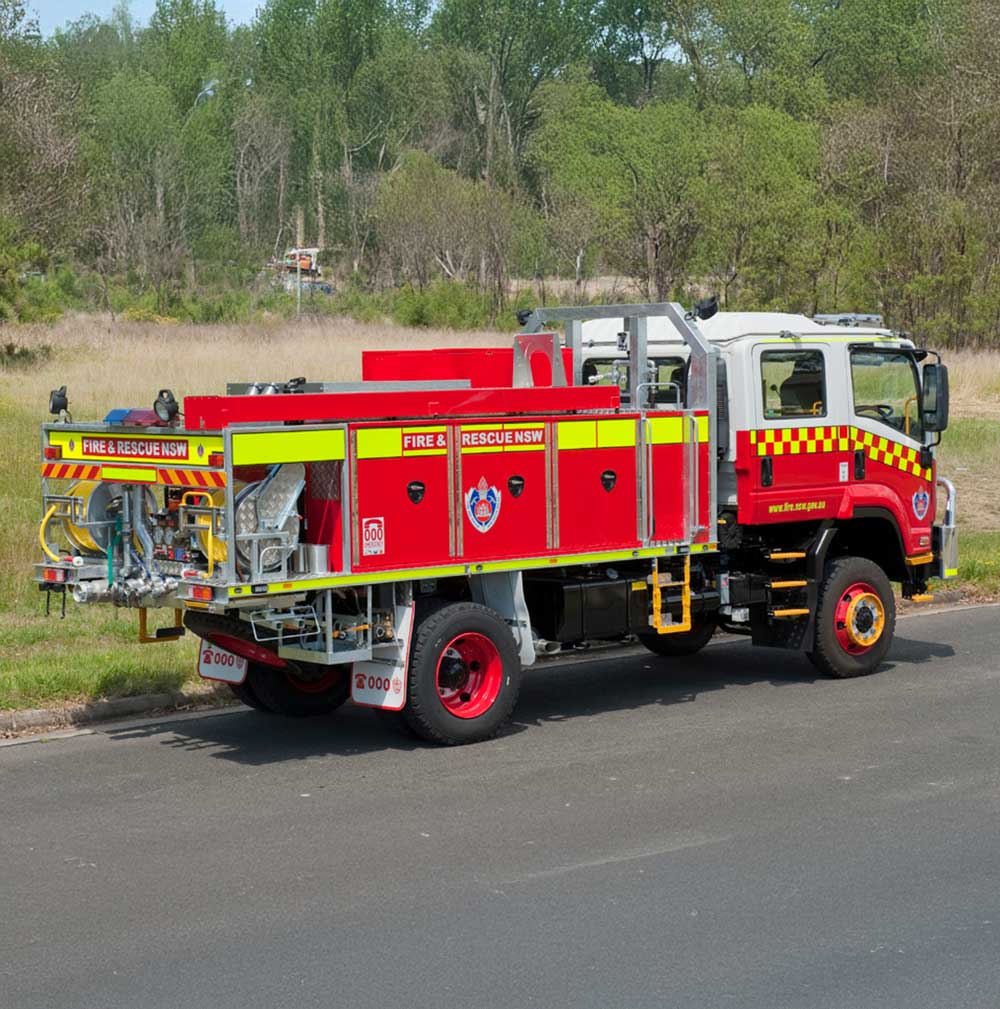

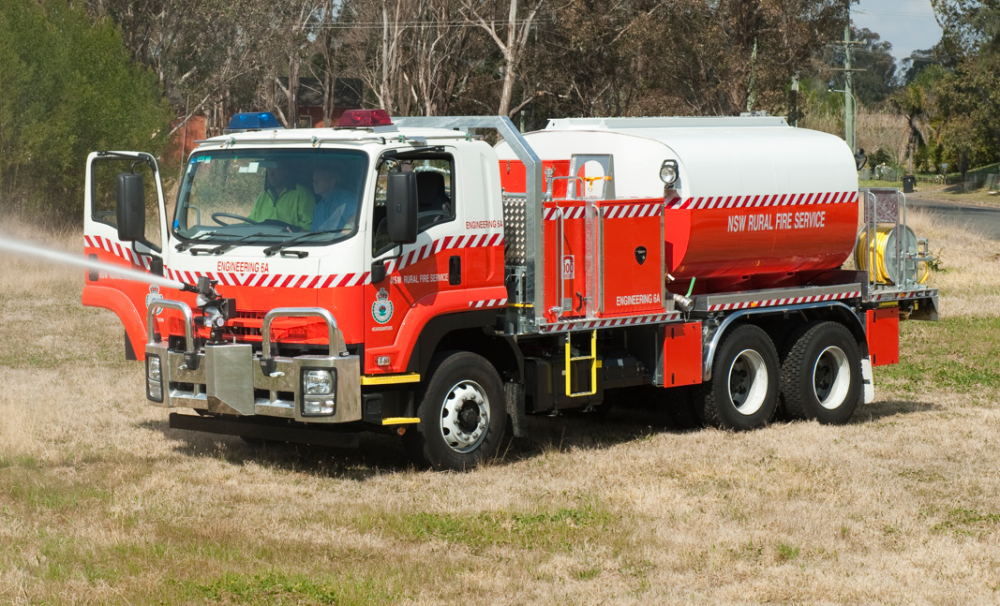

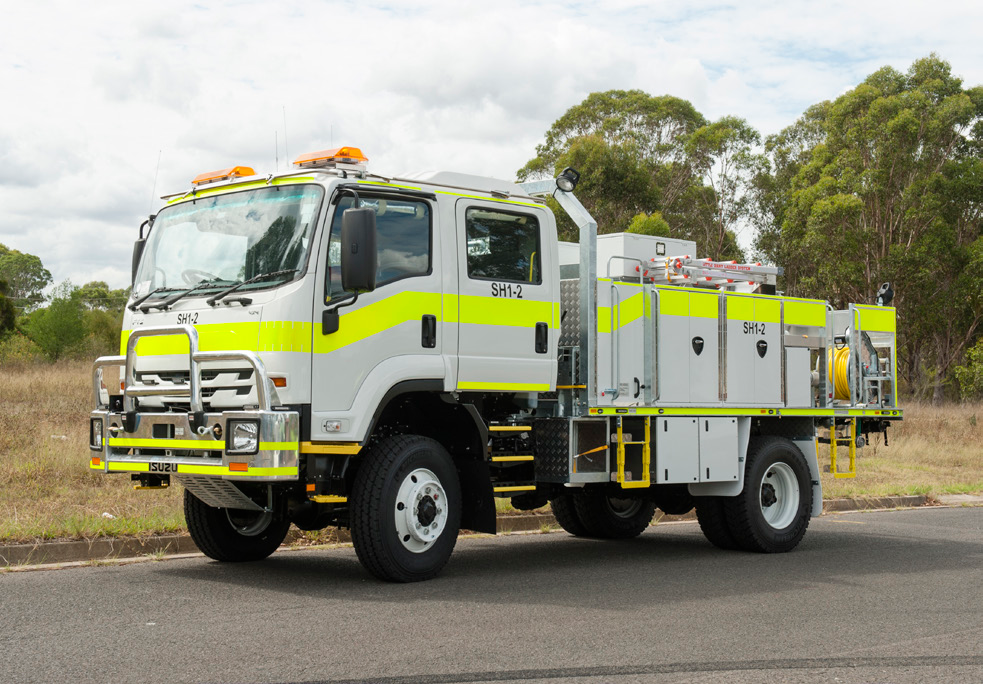

FIRE TANKER – HEAVY
4×4 Village & multipurpose
(8000 – 16000kg GVM)
TECHNICAL
• GVM: 8000 – 16000kg
• Single or Crew cabin (2 – 6 person)
• Tank: Galvanised steel or Poly up to 4000 L
PUMP OPTIONS
• Normal pressure: Flows to 2000 lpm; pump pressures to 1400 kPa
with water cooled diesel engine
• Dual with High pressure: Flows to 3000lpm @700 kPa, pressure
mode 125lpm @ 2000 kPa with water cooled diesel engine
• Dual Ultra High pressure: Flows to 2200lpm @700 kPa, pressure
pump 42 lpm @ 100 Bar
CREW PROTECTION OPTIONS
• Cabin spray ring
• Full body spray system
• Wheel sprays
• Radiant heat shields in cabin
• Deck Haven radiant heat shield awning
FOAM
• RTP
• Induction
• CAFS
OTHER FEATURES
• Control system: Traditional relay or full CANBus with chassis
integration
• Live hose reel: dual reels, 30 to 60m to suit pump flow and
pressure
• Dead hose reel
• Grassland sprays or bumper monitor
• CABA options
• Rescue equipment options
